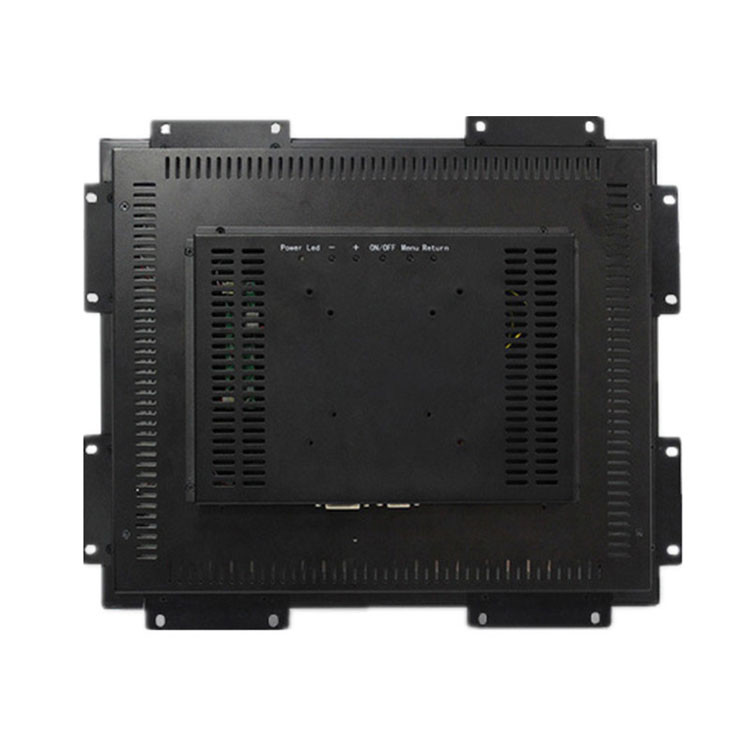

    RS323 USB 12" Resistive Touch Screen Monitor

    Ask Lasest Price
    Brand Name : OEM or CNHOPESTAR
    Model Number : HOP121-8
    Certification : CE&FCC&Rohs
    Price : Price can be negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50000 pcs/month
    Delivery Time : 5~7 days
    • Product Details
    • Company Profile

    RS323 USB 12" Resistive Touch Screen Monitor

    Kiosk Open Frame 12" Resistive Touch Screen Computer Monitor RS323 USB


    • 12 inch Usb Touch Screen lcd monitor for machine: USB control ,HDMI VGA input,DC 12V/4A input.12.1TFT LED panel resalution:1024X768.brightness 800cd/m2,conrtast ratio 900:1,5 wire line touch screen panel,USB control;
    • Faceplate surface: anti-glare coating and glare coating; Film thickness: 0.175 and 0.188mm; Glass thickness: 0.7, 1.1 and 1.8mm; Operation pressure: 20 to 150g; Storage temperature: -30 to 80¡ãC;Message noise: 5 to 15m/second; Operating current: 5 to 25mA; Humidity: <95%; Isolation resistance: 20M¦¸¡ü, 25V DC;Sealable against dust, water, oil and static; Advantages: Products insulation point is ¦µ0.03mm
    • Various choices of surface treatments available, anti-Newton, -glare, special chemical strengthen hard coating,anti-reflection; Capable of handing spacer dots diameter is less than 0.035mm; Has our own factories,so our price is competitive; Excellent sales service; Applications: Light industry; Home appliances; Portable sport devices; Access control terminals; Portable medical devices

    General
    SeriesWater-proof and Open frame
    LCD Type12.1” TFT-LCD
    Video InputVGA and DVI , HDMI - optional
    OSD controlsAllow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power SupplyType: External brick
    Input (line) voltage: 100-240 VAC, 50-60 Hz
    Output voltage/current: 12 volts at 4 amps max
    Mount Interface1)VESA 75mm and 100mm
    2)2)Mount bracket, horizontal or vertical

    LCD Specification
    Active Area(mm)246.0(H)×184.5(V)
    Resolution1024*768
    Dot Pitch(mm)0.3075×0.3075
    Nominal Input Voltage VDD+3.3V(Typ)
    Viewing angle (v/h)60°/70°(CR>5)
    Contrast1000:1
    Luminance(cd/m2)350, 1000cd/m2 - optional
    Response Time(Rising/Falling)5ms/5ms
    Support Color16.2M colors
    Backlight MTBF(hr)50000

    Touchscreen Specification
    TypeResistive touch screen
    Resolution4-wires/5-wires touch screen
    Light Transmission92%
    Touch Life Cycle50 millions
    Touch Response time2ms
    Touch System InterfaceUSB interface
    Power consumption+5V@80mA

    RS323 USB 12" Resistive Touch Screen MonitorRS323 USB 12" Resistive Touch Screen MonitorRS323 USB 12" Resistive Touch Screen MonitorRS323 USB 12" Resistive Touch Screen Monitor
